Retreiving Annotation via biomart

Annotation from BioMart with Ensembl names is most flexible way to retrieve tabular annotation for an organism.

  1. The Biomart start page should look like …

annotation_figures1

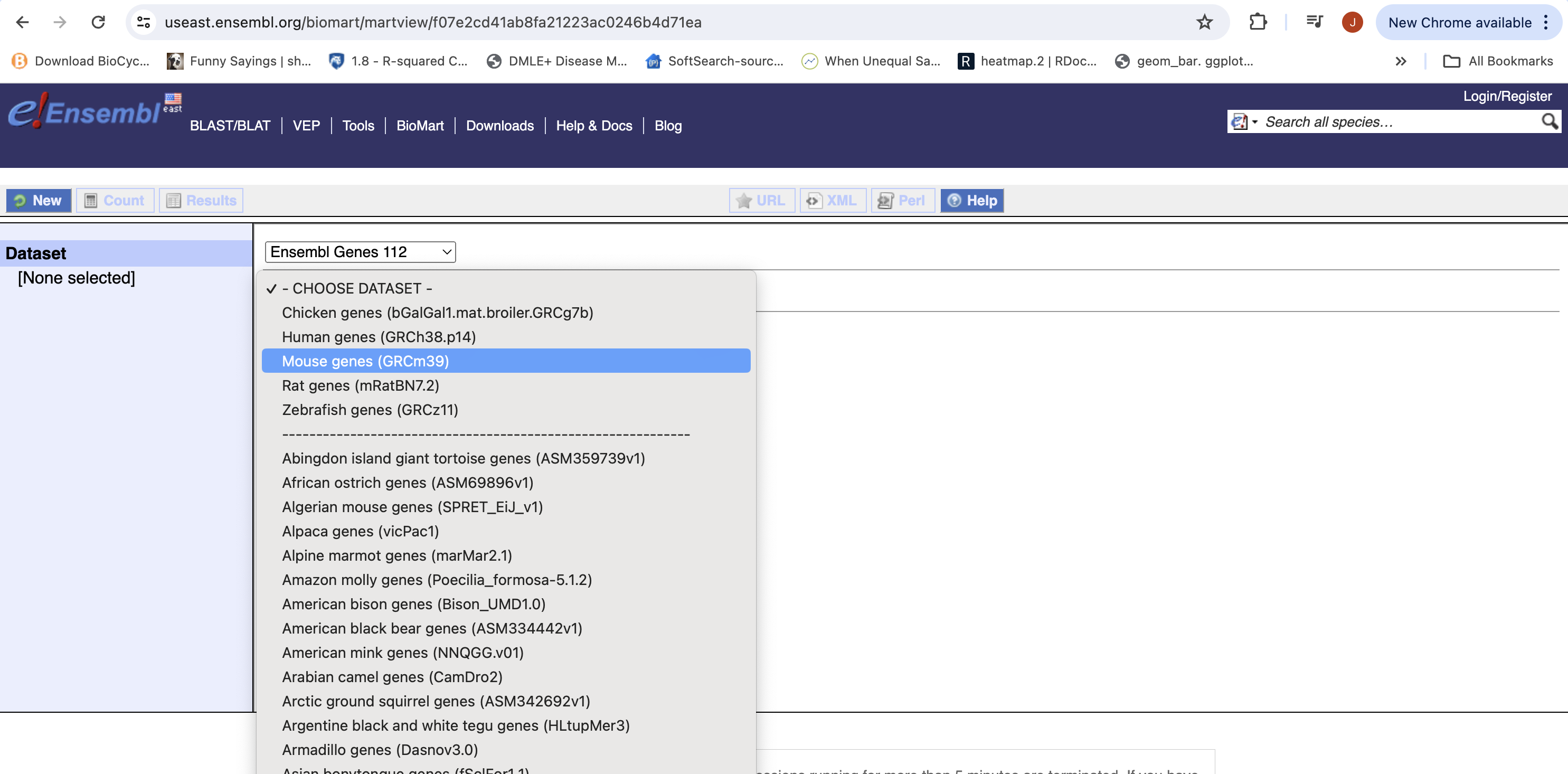

  1. First select the dataset, for gene expression experiment select Ensembl Genes 114 (version 114). The current version as of this workshop.

annotation_figures2

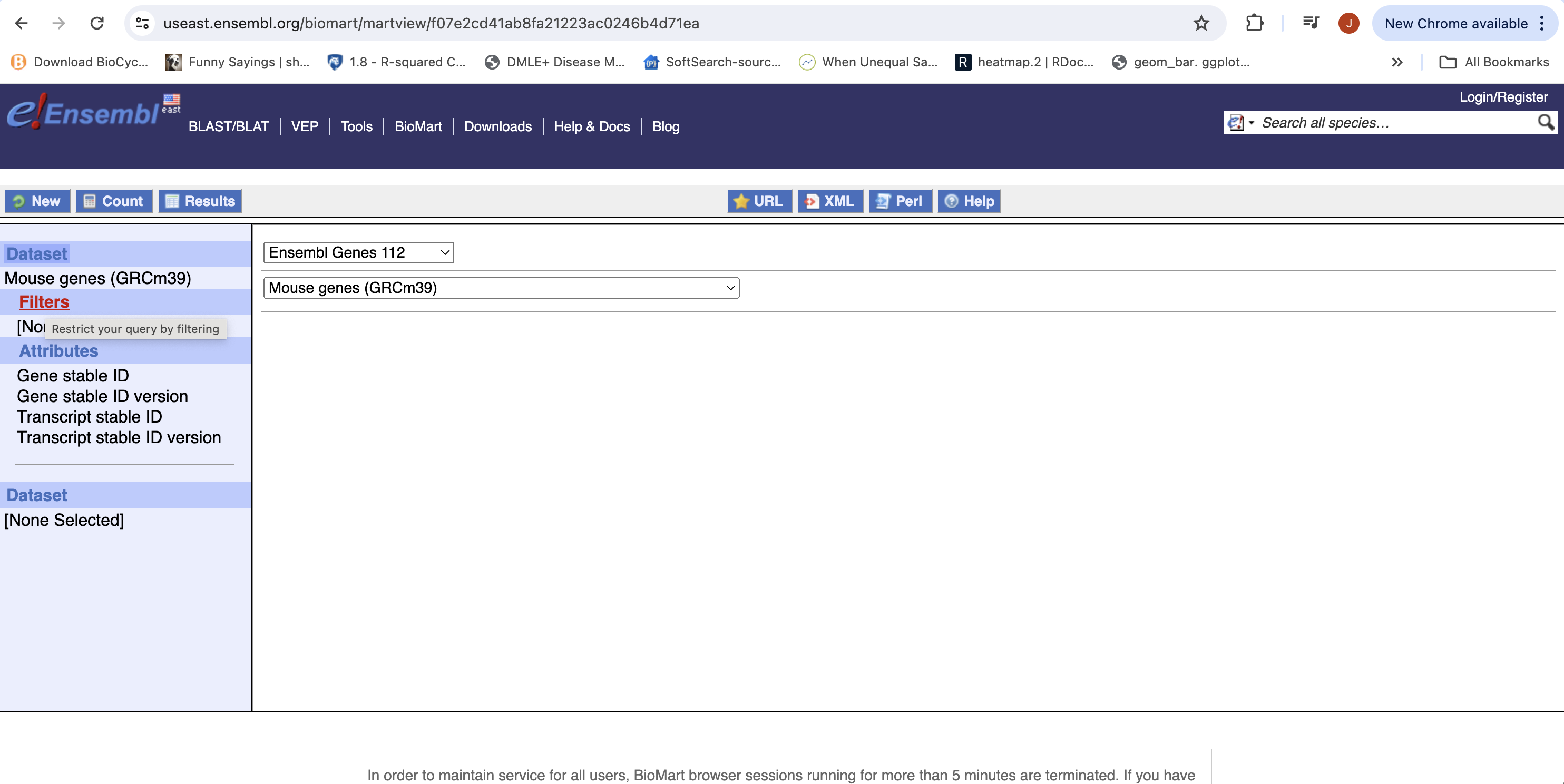

  1. Then the Organism, Here Mouse genes which is based on the GRCm39 genome.

annotation_figures3

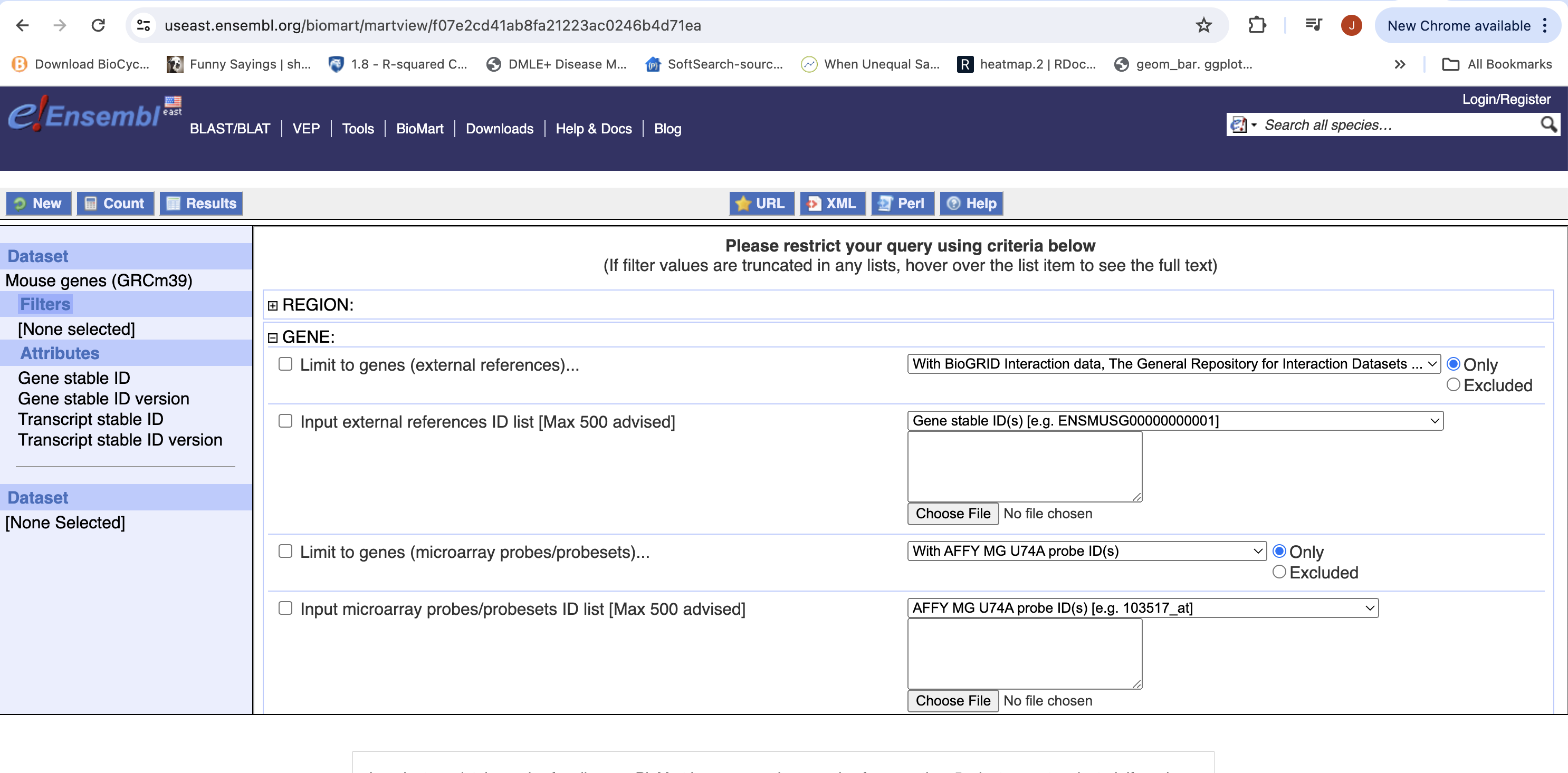

  1. You can choose to filter to only a subset of genes. Or a chromosome, or regions. We won’t filter here. BY default, all genes in the genome are selected.

annotation_figures6

annotation_figures7

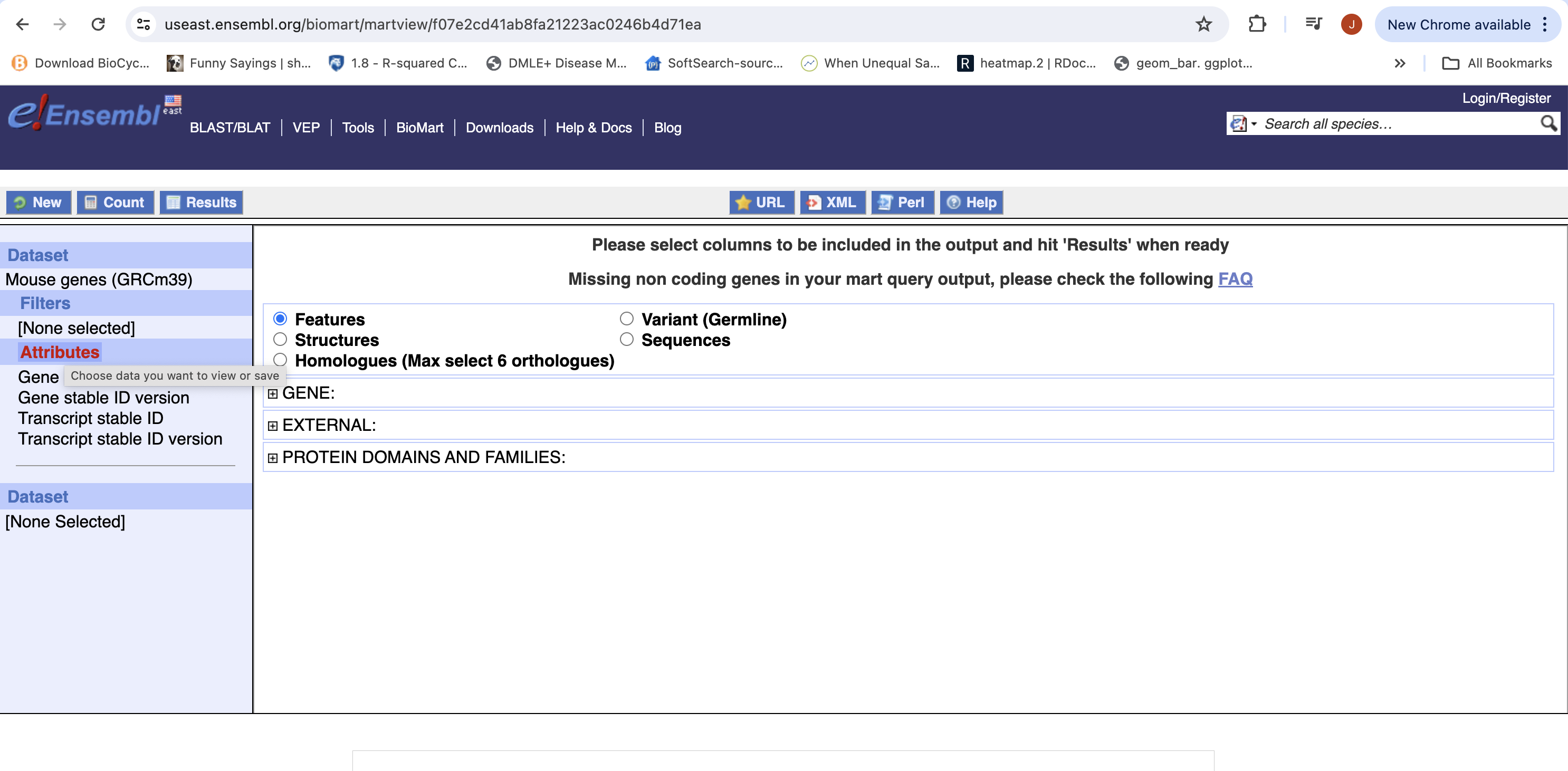

  1. Next select the attributes you want in the table.

annotation_figures8

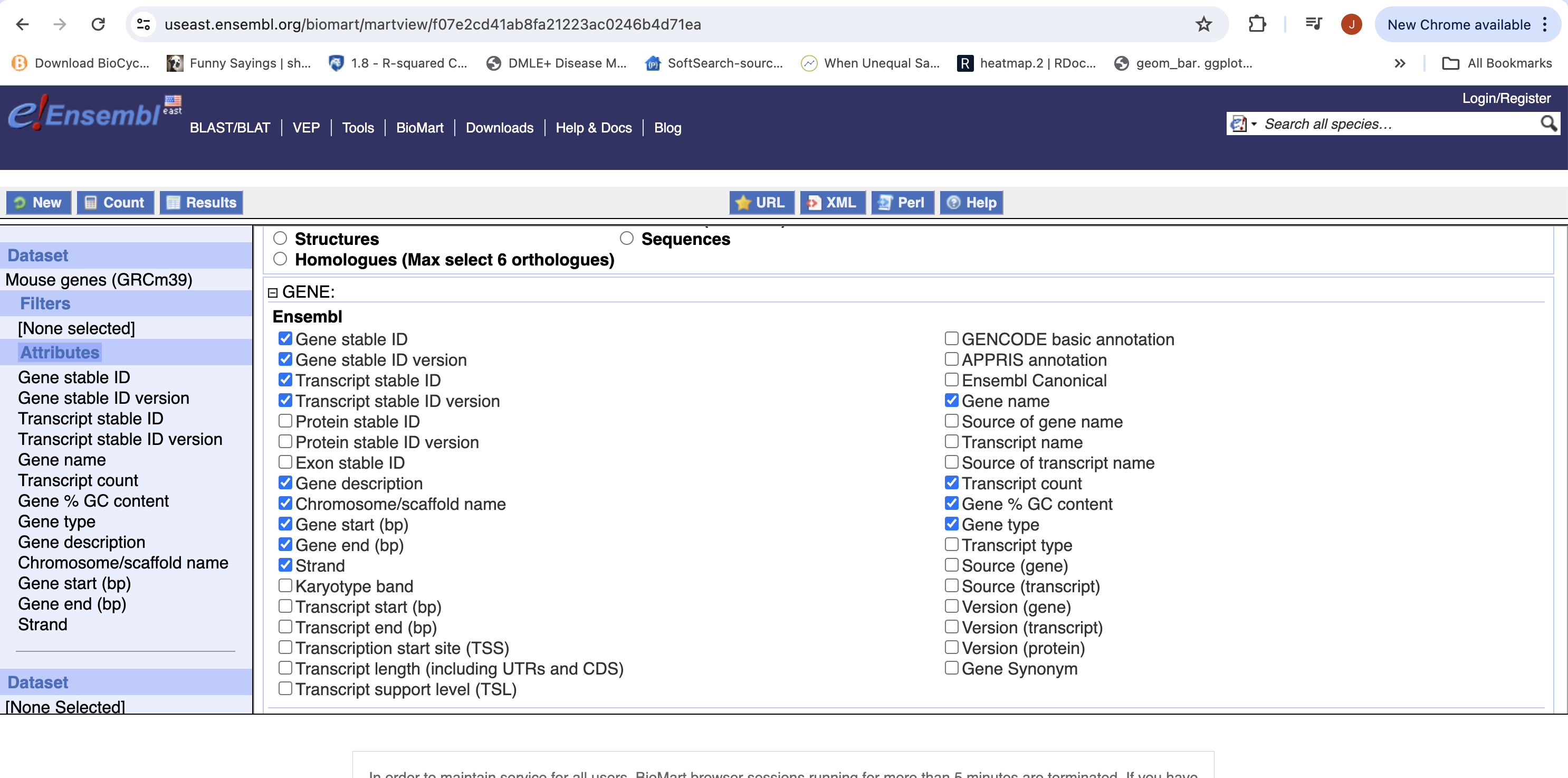

  1. Expand the ‘GENE’ tab, and select the attributes you want to retrieve. HERE recreate the list you see on the left side.

annotation_figures9

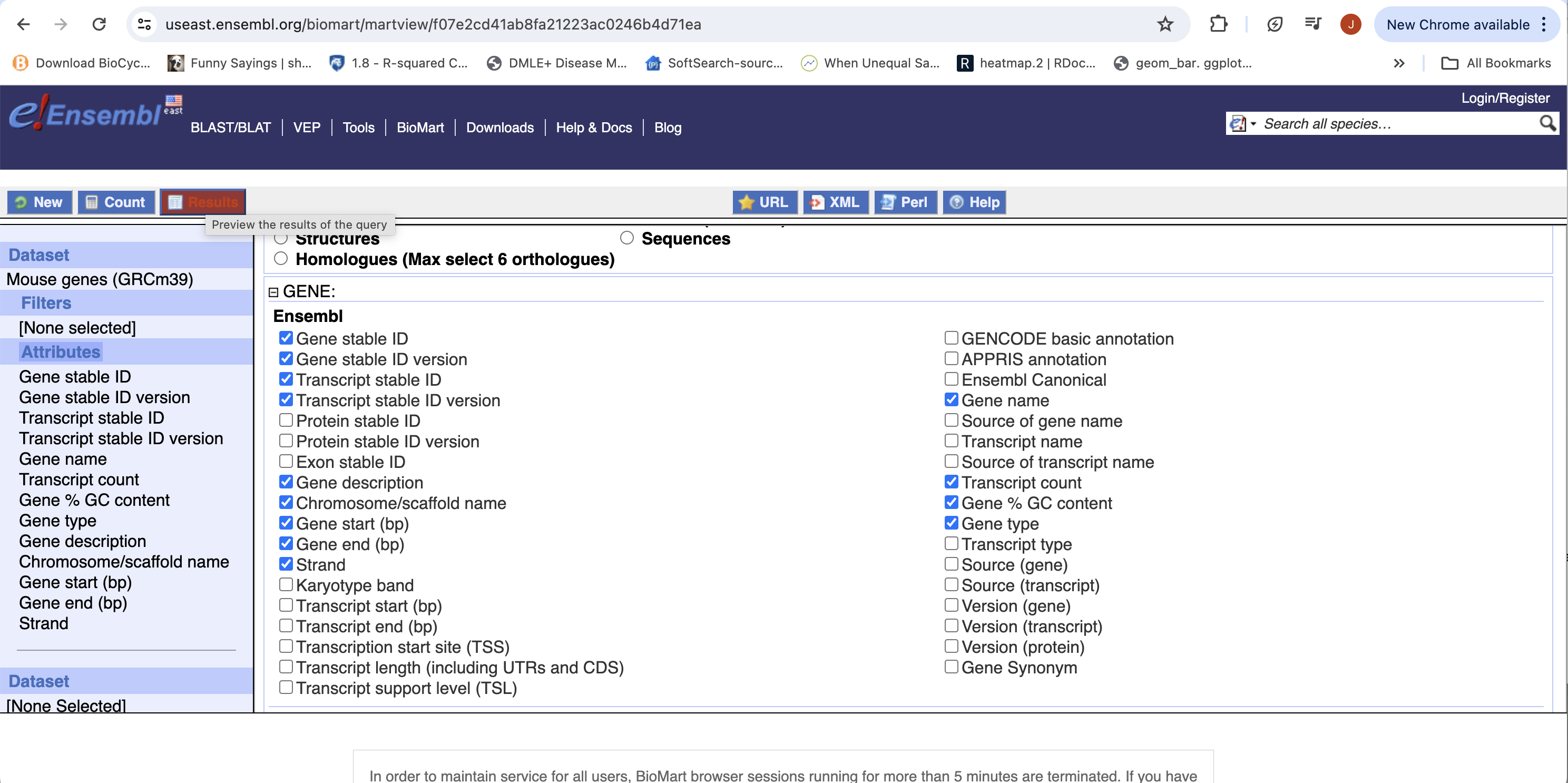

  1. Click “Results” (Top left -ish).

annotation_figures10

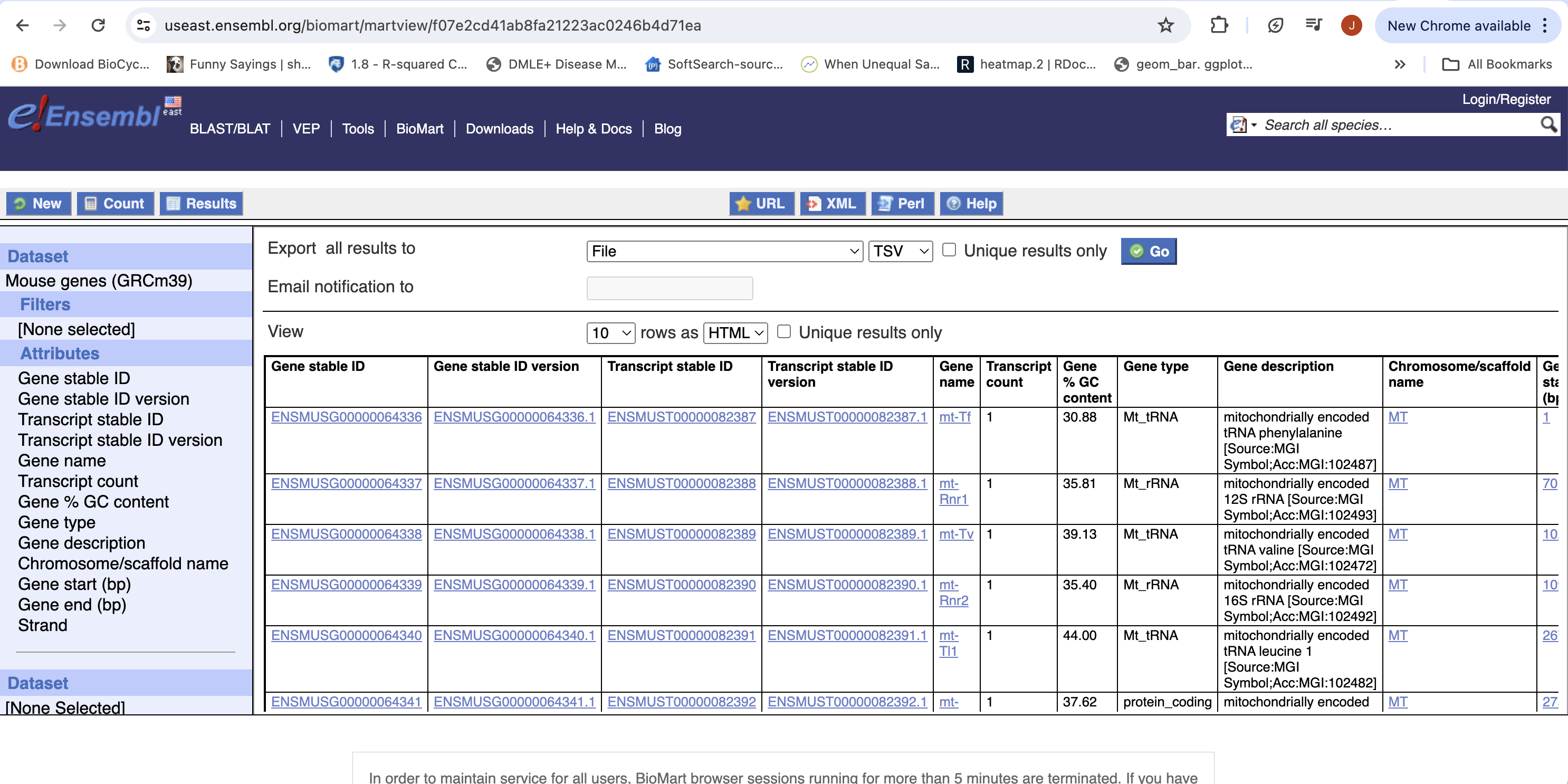

  1. Select “GO”, to download a tab-separated value (tsv) file.

annotation_figures11

  1. The file will save as “mart_export.txt”, put the file into your rnaseq_example directory, rename to “ensembl_mm_114.txt” and open the file in a spreadsheet program to view the annotation.
